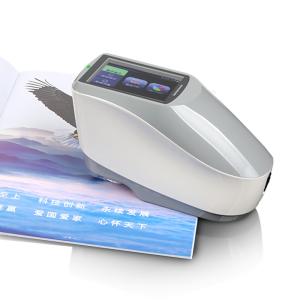

3NH YD5050 Cmyk Color Densitometer For Printing Package

3NH YD5050 cmyk color densitometer portable spectrodensitometer with 45/0 for Printing Package Industry

3nh launched new model YD5010 Grating Spectrophotometer Densitometer with 45/0(45 ring-shaped illumination, 0 degree viewing angle), comply to standard ISO 5-4,CIE No.15. It is suitable for using in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing; and it is able to customize single aperture Φ2mm,Φ4mm,Φ8mm.

Product Features

1. 45/0 geometrical optics structure, comply with CIE, the testing conditions of M O, M 1,M 2 , M 3 stipulated by ISO 13655 standard, it can accurately measure various printing density , overprint rate and other printing parameters.

2. Accurately measure reflectance spectrum, CMYK density and Lab value of the sample;

3. High-configuration electronic hardware: 3.5-inch TFT true-color screen, capacitive touch screen, concave grating, 256-pixel dual-array CMOS image sensor, etc.；

4. Perfect combination of the beautiful appearance and the ergonomic structure design;

5. Switchable apertures: Φ2/4/8/20mm, adapt to more samples;

6. Large-capacity storage space, over 20,000 test data

7. Combined LED light sources with long life and low power consumption, including UV light;

8. USB/Blue2.1 dual communication mode is widely useful;

9. Especially suitable for process control and quality control of printing plants;

10. PC software has powerful function expansion.

Comparasion with Other brands

For color and glossy measurement, there are three famous companes, Xrite from USA, Konimica Minolta from Japan, BYK from German, but now we, 3nh, are also famous all over the world. With our own R&D team, we focus on color for 21 years, and we have many models to compare with X-rite Konica Minolta BYK Machines.

All in all, First,at the some level, the price for our machine is much lower but performance is similar even better when compare withe Minolta,X-rite and BYK’s instrument; Second, for our partner, we normally give 2 years warranty; Third, if there are something wrong with 3nh machine, within the warranty, the repair fee is free while without the warranty, we only charge some cost price for it, less than RMB1000.But for Minolta,X-rite, BYK, the repair fee normally much than USD1000. And we 3nh offer the lifespan maintenance for all customers. Welcome customers all over the world to visit and order 3nh products in Shenzhen, China.

3nh colorimeter spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.

ISO 9001, CE, ROHS, FCC, TUV, SCM CERTIFICATES

Color Space

CIE LAB
-L(Lightness)-0 is black,100 is white
-a(Red-Green)-positive values are red; negative values are green and 0 is neutral
-b(Blue-Yellow)-positive values are yellow;negative values are blue abd 0 is neutral

CIE LCH
L: Lightness,value is the same in each scale C:Chroma H:Hue Angle

dE Total Color difference
Delta-E is a measurement used to indicate how much a color deviates from an accepted standards.The higher the dE, the more inaccurate the color.

Frequently Asked Questions

1. Can the YS4560 spectrophotometer be equivalent to any models of world famous brands?
Answer: Yes, our YS3060 is equivalent to the color measurement function of BYK 6801.

2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer. We research and develop, design and produce, market and sell color measuring instruments and gloss meters.
Our company office, together with our factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!

3. What's your main market?
Answer: We sell to the global market.

4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.

5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via Alibaba platform.

6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
